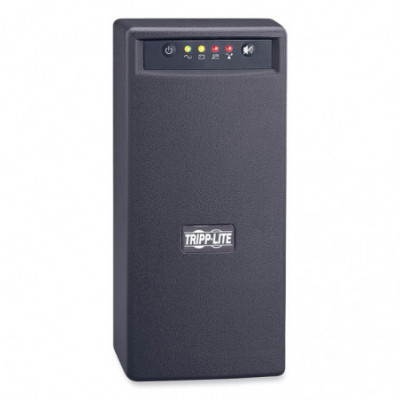

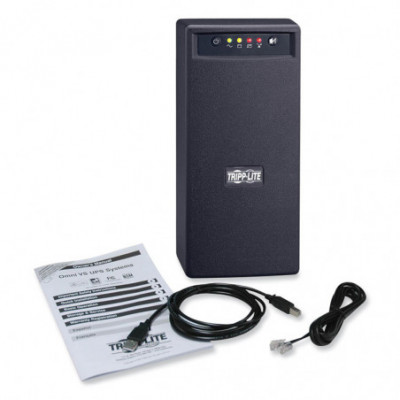

OmniVS Line-Interactive UPS Tower, 8 Outlets, 1,000 VA, 510 J

Product Number: ESS-TRPOMNIVS1000
$320.12
Ideal protection for PCs, workstations and small servers. Automatic voltage regulation (AVR) corrects low-voltage conditions (brownouts) back to safe 120V power without draining the UPS battery. Included dataline connectors provide protection for all connections. USB port enables free unattended shutdown software, so your files are saved in the case of a blackout, even when you are not there. Support battery replacement via built-in access panel.
Quantity

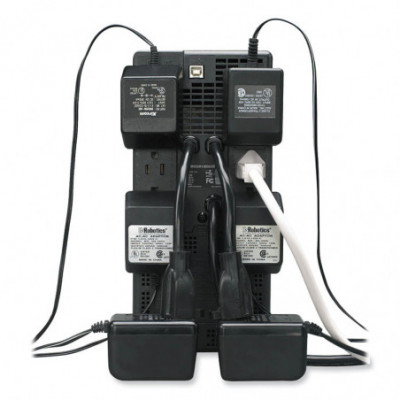

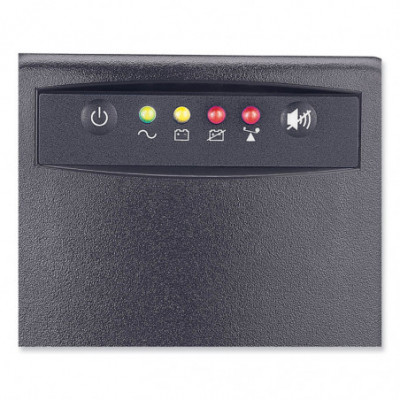

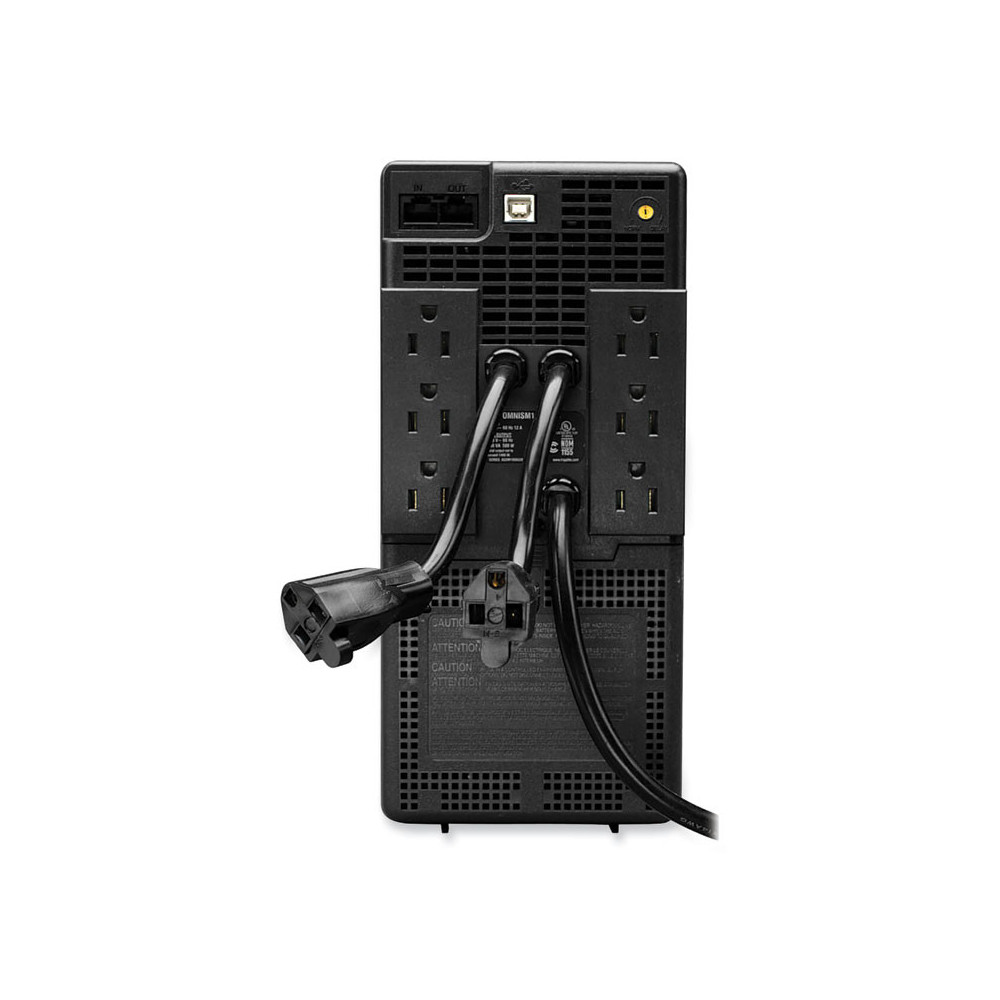

Battery backup system is ideal for supporting a variety of computer, internetworking, telecom and consumer electronics equipment. USB port enables unattended shutdown without data loss during extended power failures. Automatic Voltage Regulation circuits correct brownouts without using battery power. Battery-supported outlets are for use with computer, monitor and one vital system peripheral; the additional surge suppression-only outlets are designed for printers and other system accessories not requiring battery backup. Dataline suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup or DSL phone connection. Audible alarm and front panel LEDs indicate UPS system and line power status.
ESS-TRPOMNIVS1000

Data sheet

Height
10.75"
Height
10 3/4"
Disclaimer Statement
Run Time based on single PC load with 15" flat panel monitor.
Width
5.25"
Width
5 1/4"
Depth
7 1/4"
Depth
7.25"
Color(s)
Black
Connector/Port/Interface
USB
Global Product Type
Backup Systems
Pre-Consumer Recycled Content Percent
0%
Post-Consumer Recycled Content Percent
0%
Total Recycled Content Percent
0%
Unit Of Measure
EA
Cord Length
6 ft
Model Name/Number
Omni VS OMNIVS1000
System VA
1,000 VA
System VA
1000 VA
Automatic Voltage Regulation (AVR)
Yes
Battery Recharge Time
4 h
Connected Equipment Guarantee/Warranty
$200,000 Ultimate Lifetime Insurance
Backup Time at Full Load
3.5 min @ 500 W
Backup Time at Full Load
3.5 minutes @ 500 Watts
Joules Of Surge Protection
510 J
Number of Outlets
8
Diagnostics/Alarm/Status Light
Alarm
Diagnostics/Alarm/Status Light
LED
Alarm(s)
Audible
Emergency Power Off (EPO)
No
Input Frequency
60 Hz
Number of Outlets/Type
2 Surge Only
Number of Outlets/Type
6 UPS/Surge
Run Time
60 min
Run Time
60 minutes
Protection Type
Phone
Protection Type
Ethernet
Protection Type
Modem
Protection Type
Power
Protection Type
DSL
Protection Type
Fax
Backup Time at Half Load
14 minutes @ 250 Watts
Backup Time at Half Load
14 min @ 250 W
Lines
1
Multimedia Protection
DSL/Ethernet/Telephone
Jacks
RJ11
Jacks
RJ45
React Time
Instantaneous
Telephone/Internet Protection
DSL
Telephone/Internet Protection
Fax
Telephone/Internet Protection
Modem
Telephone/Internet Protection
Ethernet
Telephone/Internet Protection
Phone
Compliance Standards
FCC Class B Certified
Compliance Standards
CSA Certified
Compliance Standards
UL Listed
Compliance Standards
RoHS Compliant
Compliance Standards
NOM
Jacks/Ports
RJ45
Jacks/Ports
RJ11
Backup Systems Alarm(s)
Audible
Backup Run Time
60 min
